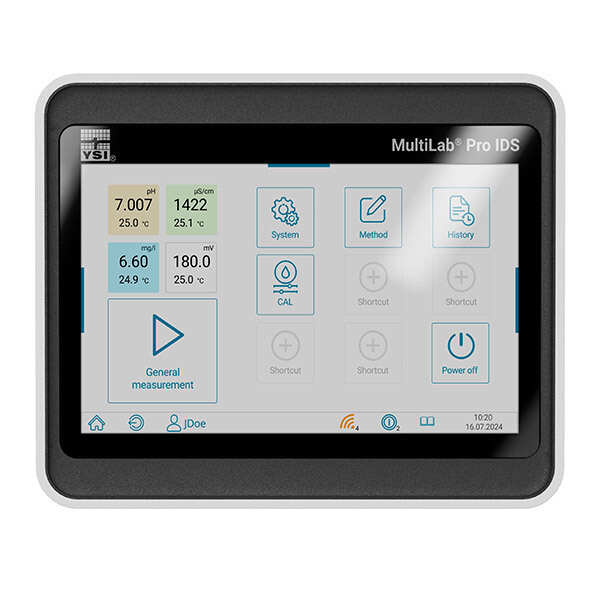

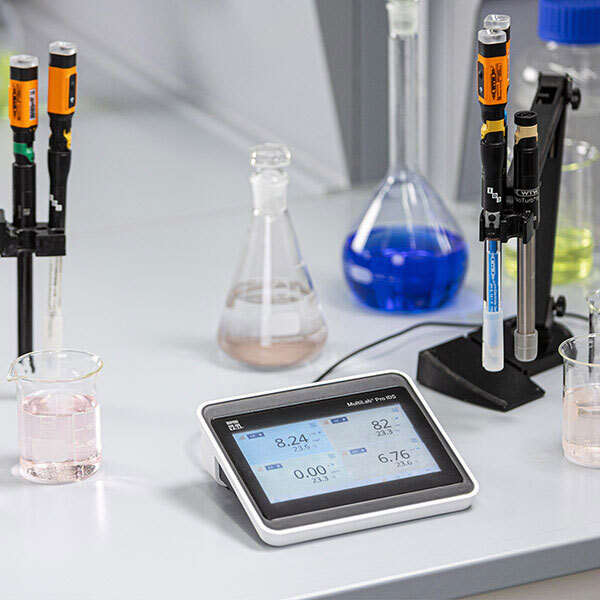

YSI-1FD760Y - YSI MultiLab Pro 20 IDS Meter (YSI1FD760Y)
YSI-1FD760Y - YSI MultiLab Pro 20 IDS Meter (YSI1FD760Y) - Image 2
YSI-1FD760Y - YSI MultiLab Pro 20 IDS Meter (YSI1FD760Y) - Image 3

YSI-1FD760Y – YSI MultiLab Pro 20 IDS Meter (YSI1FD760Y)

$1,815.00

YSI’s MultiLab® Pro 20 IDS is a modern high-performance multiparameter device with two (2) galvanically isolated measuring channels for pH, ORP, mV, conductivity, oxygen, BOD, and ISE measurement.  Up to 2 identical or different parameters can be measured simultaneously.  With its brilliant 7” touch screen under hygienic glass, it is the perfect companion for demanding tasks, even in critical (GxP) areas.  Liberate yourself of cables with the MultiLab® Pro IDS by making use of wireless modules in conjunction with Intelligent Digital Sensors (IDS) and measure conveniently under fume hoods, or anywhere in your lab!

Instrument only. Cables, probes/sensors, and accessories sold separately.

REPLACES NCL# YSI-502, YSI Model 4010-2

- +
SKU: YSI-1FD760Y Category:
Features of the YSI Multilab® Pro 20 IDS:  YSI 1FD760Y
  • Measures pH, ORP, conductivity, dissolved oxygen, ISE, BOD, and more
  • Wireless-ready for IDS modules
  • Digital sensor recognition
  • Simultaneous measurement with up to two independent measuring channels
  • GxP-compliant
  • Brilliant touch display
  • Preset and definable buffer sets
  • QSC calibration
  • AutoRead function
  • LIMS ready
  • Export to PDF/A, JSON and csv
  • Special touchscreen glass can be operated with gloves & compatible alcohol and disinfectants
Intelligent Digital Sensors (IDS)

The IDS sensors automatically store their unique serial number and calibration data. In addition, they also digitally process the measurement signal. The sensors can be moved from instrument to instrument and maintain their calibration data and transmit this information to the new instrument.

  • Plug and play connectivity with each instrument
  • IDS sensors store their own unique ID with serial number and calibration data
  • Digital sensor recognition, processing and data transfer
  • Includes self-stirring BOD (optical or polarographic), fluorescent dissolved oxygen (FDO), pH, ORP and conductivity sensors

Wireless Sensors

Free yourself from cables! The MultiLab offers wireless sensors for pH, FDO, conductivity, and ORP, giving you freedom to move around your laboratory.

EPA Approved Methodology

The IDS OBOD probe (optical) and the IDS 4100 BOD probe (polarographic) can be used for wastewater compliance reporting of BOD and CBOD. Available IDS pH and conductivity sensors can also be used for drinking water and wastewater compliance reporting.

By using the available BNC adapter and the corresponding ISE, the Multilab Pro IDS can be used for compliance reporting of Ammonia (wastewater), Bromide (wastewater), Chloride (wastewater), Cyanide (wastewater and drinking water), Fluoride (wastewater and drinking water), Nitrate (wastewater and drinking water), Potassium (wastewater), and Sulfide (wastewater).

Channels 2
Digital / IDS Sensors Yes
Display Brilliant color display, 1024×600 px
GxP Compliant Yes
Parameters Measured pH, redox, mV, O2 (saturation, concentration, partial pressure), ISE, conductivity (specific resistivity, salinity, TDS), temperature, BOD (including SOUR and OUR tests)
Ports 2x IDS, 2x USB-A, 1x Ethernet
Power Universal power supply, USB-C
Warranty 3 year instrument warranty
