HiTemp 140 Temperature Data Logger
The HiTemp 140 is a rugged, high precision, temperature data logger for use in severe environments, e.g Autoclaves & Sterilizers, Ovens, Research Labs and Food Processing.

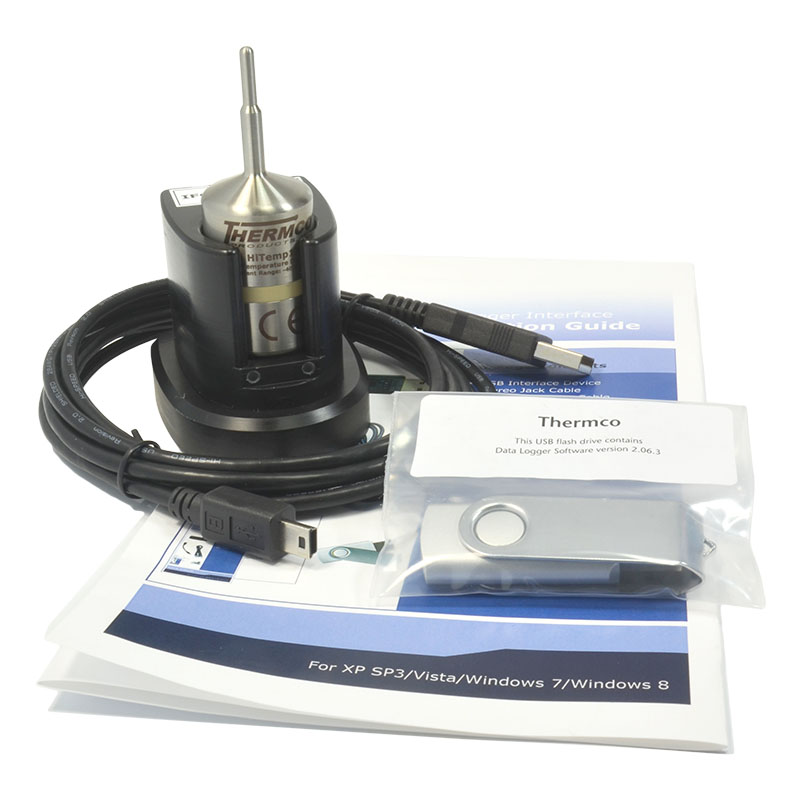

This stainless steel device is submersible, can withstand temperatures up to140°C (284°F) and has an accuracy of +/-0.1°C (0.18°F) over the entire operating range. The HiTemp 140 stores up to 32,700 date & time stamped readings, and has non-volatile solid state memory that will retain data even if the battery becomes discharged. Using the USB Docking Station & Software (sold separately), starting, stopping and downloading the HiTemp140 data is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.
FEATURES:
- ±0.1°C (0.18°F) Accuracy
- Operates Up To 140°C (284°F)
- Submersible (IP68)
- Rugged Stainless Steel Housing
- User Replaceable Battery
- Rugged
- Programmable start time
- Programmable stop time
- Engraved Label
- Probe Lengths Up To 7”
- Battery Life Indicator
- NIST Traceable Certificate, not included, but available
SPECIFICATIONS:
| Temperature Sensor: | 100Ω Platinum RTD |
| Operating Environment Range (submerged): | -40 to +140ºC (-40 to +284ºF), 0%RH to 100%RH |
| Probe Temperature Range: | -200 to +260°C (-328 to +500°F) |
| Temperature Resolution: | 0.01ºC (0.02ºF) |
| Calibrated Accuracy: | ±0.1°C / ±0.18°F (20 to +140°C / 68 to +284°F) |
| Start Modes: | “Software programmable immediate start Delay start up to eighteen months in advance” |
| Stop Modes: | “Manual through software Timed (specific date and time)” |
| Real Time Recording: | May be used with PC to monitor and record data in real time |
| Password Protection: | An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password. |
| Memory: | 32,700 readings |
| Wrap Around: | Yes |
| Reading Rate: | One second up to once every 24 hours |
| Battery Type: | 3.6v high-temperature lithium battery included; user replaceable |
| Battery Life: | 1 year typical (1 minute reading rate at 25ºC/77ºF) |
| Calibration: | Digital calibration through software |
| Calibration Date: | Automatically recorded within device |
| Data Format: | Date and time stamped ºC, ºF, K, ºR |
| Time Accuracy: | ±1 minute/month at 20ºC to 30ºC (68ºF to 86ºF) (Stand alone mode) |

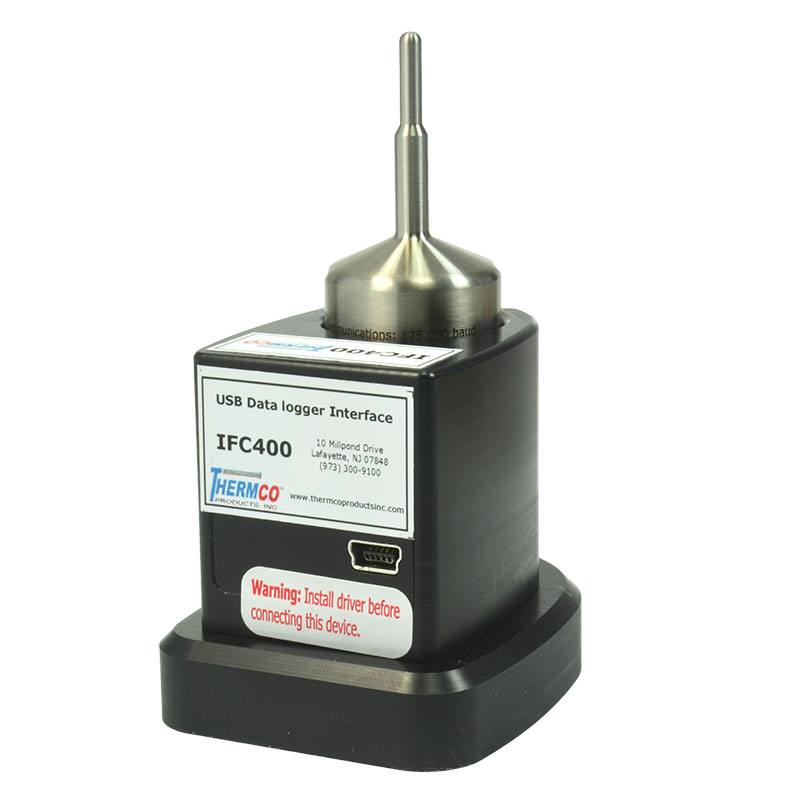

| Computer Interface: | IFC 400 USB docking station required 125,000 baud |
| Dimensions (Body): | 2.7” x 0.97” dia. (67mm x 25mm dia.) |
| Dimensions (Probe**): | 1” x .188” to .125” transitional dia. 50mm x 3.8mm to 3.2mm transitional dia. |
| Weight: | 4.2 oz (120g) |
| Material: | 316 Stainless Steel |
MadgeTech 4 Software Requirements
The MadgeTech Data Logger software requires an IBM or compatible PC with the following:
- PC-compatible Pentium(R)-class system
- Windows XP, Vista, Windows 7 (32 and 64 bit), Windows 8* and Windows 10
Software is not supported on Windows 8 RT - Color SVGA monitor (1024 x 768 resolution)
- 1GB RAM
- At least 30MB free hard disk space (for installation)
- Available 9 pin male serial (COM) port (for serial logger interface cable)
- Available USB port (for USB logger interface cable)
